About this item
- Fully automatic water level controller with dry run protection single phase
- Anti corrosion stainless sensor
- Contact capacity : 30 A
- Start, stop, auto, manual switch
- Tank water level indication, pump on indication
|
|
|
|
|
|---|---|---|---|
SAVE WATERInstall microtail fully automatic water level controller and save water to save lives. |
SAVE ENERGYInstall microtail fully automatic water level controller and save energy and electricity |
SAVE PLANETInstall microtail fully automatic water level controller and help to save planet. Green Planet Clean Planet. |
SAVE TIME & MONEYInstall microtail fully automatic water level controller and save your time and money |

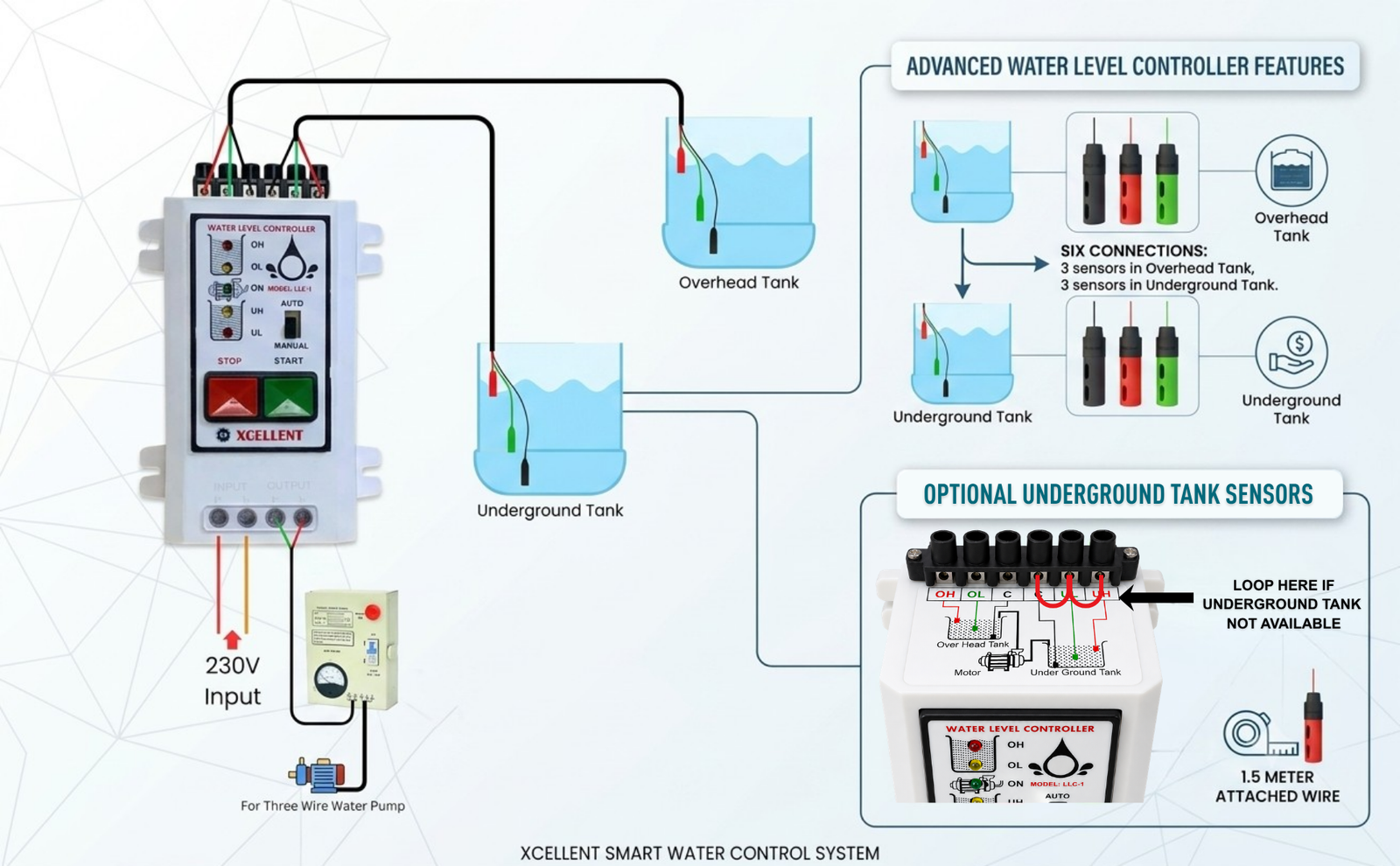

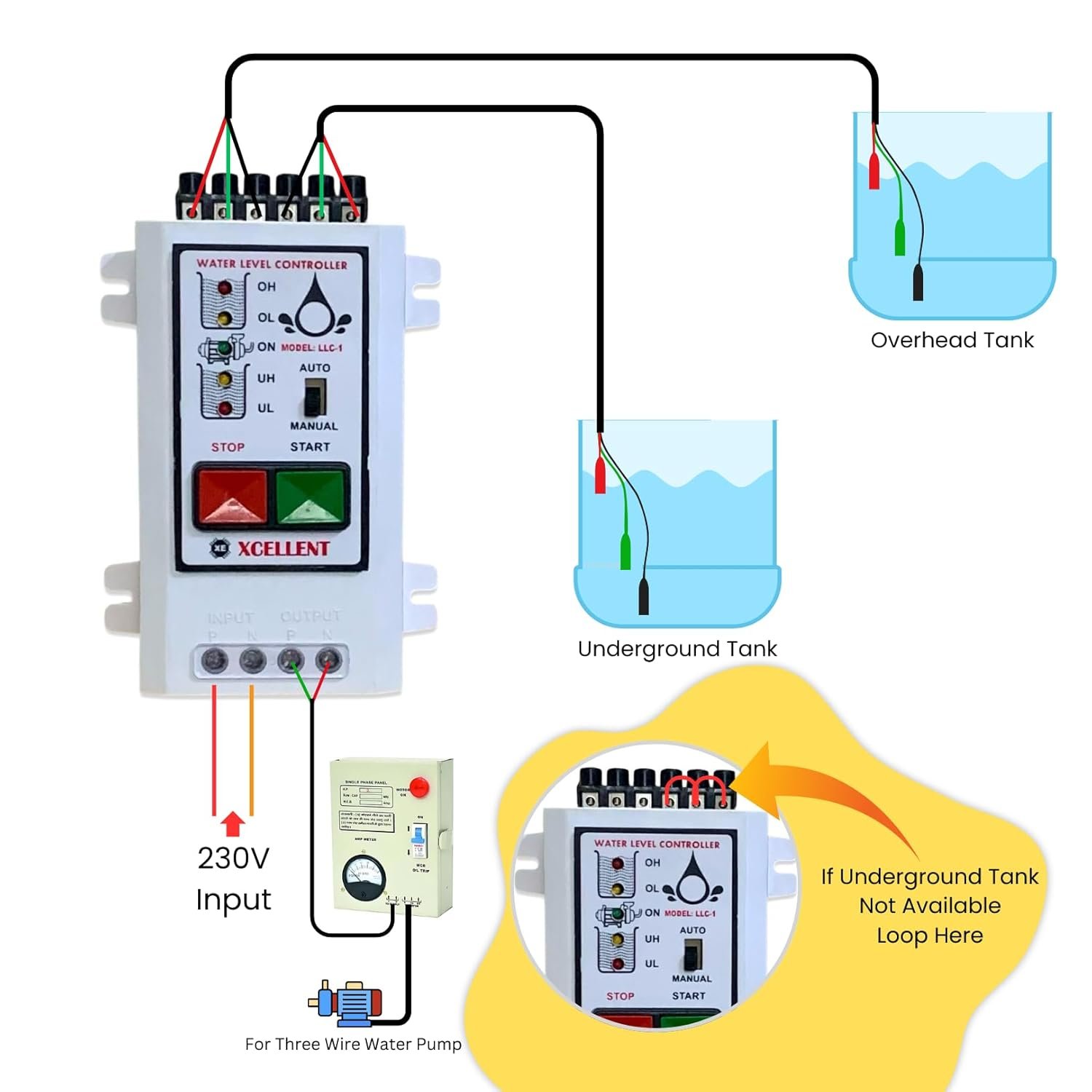

Six connections of water tank sensors
Six sensors provided to be installed in water tanks. Three into overhead tank and three into underground tanks. Sensors placement should be as shown in this image. All three sensors into water tank is required for fully automatic operation.

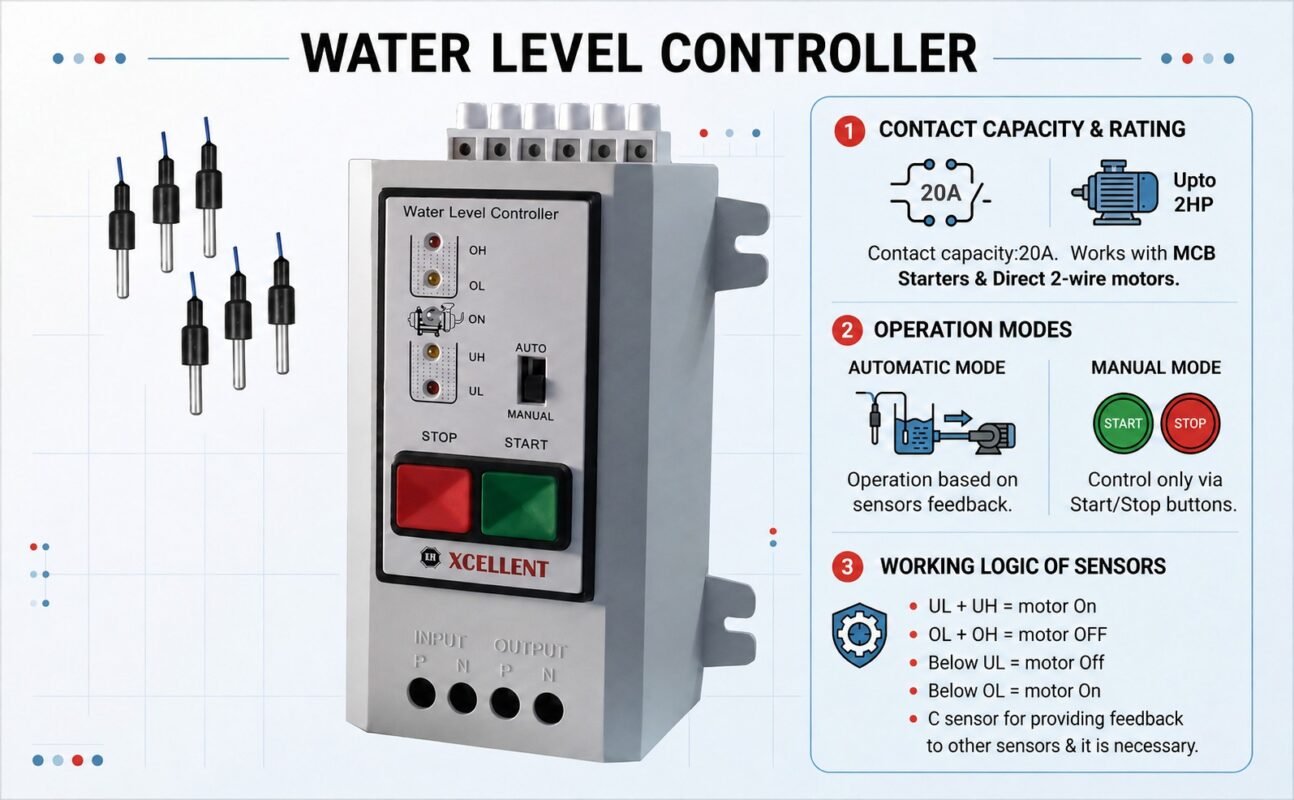

Motor will be turned on only if underground tank all three sensors into the water.
Middle sensor “OL” in the overhead required to turn on the motor when water reaches below this sensor.
Middle sensor “UL” required to stop the motor when water reaches below this sensor.
High quality long durability sensors
Six numbers of sensors provided with this controller. This sensors are having best in quality sensing material and having 1.5 meter wire attached with it.
Sensors having all the wires in single color. So all the sensors are the same. Just need to be installed as per diagram on the controller.

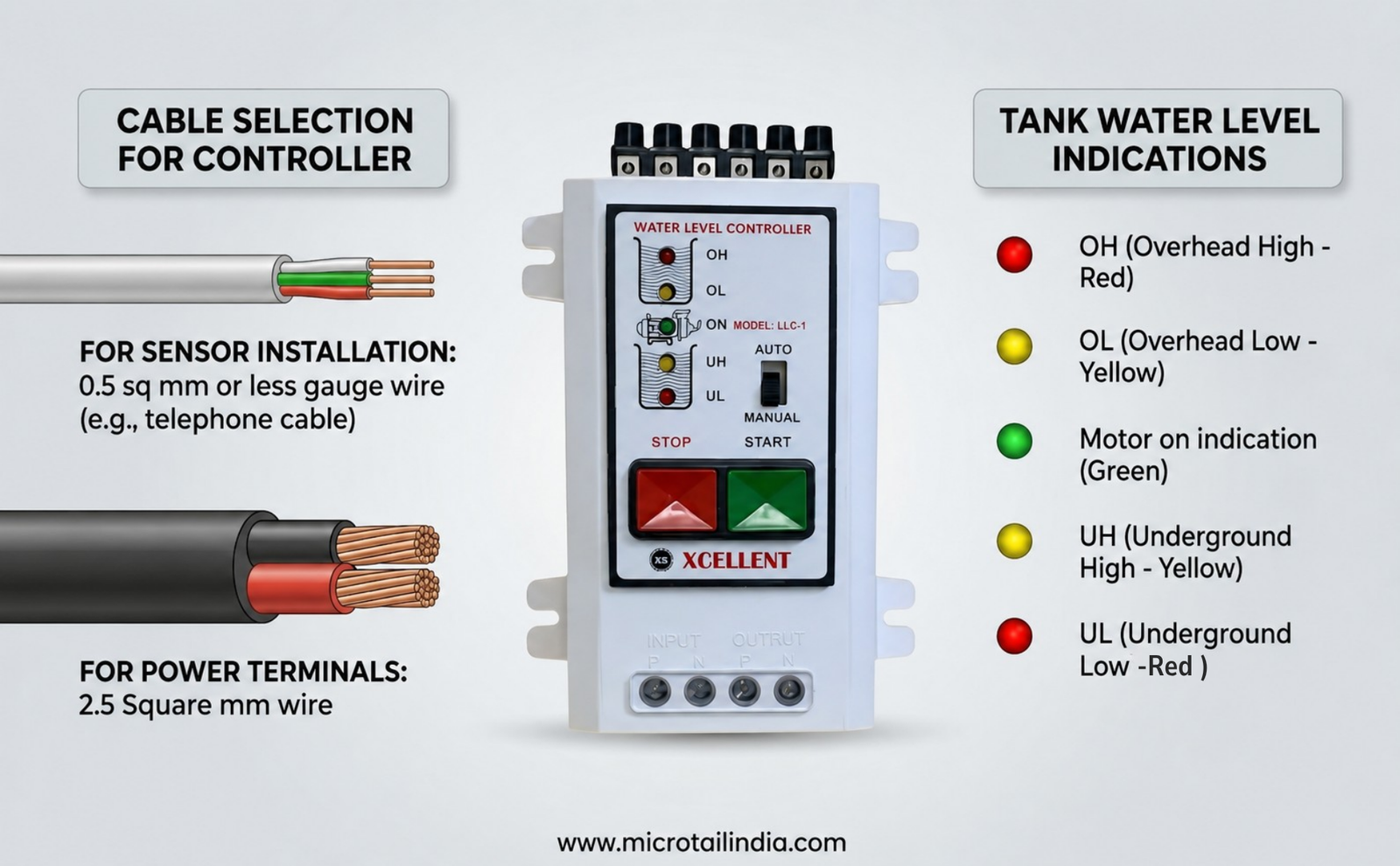

Cable selection for controller
1.0 square mm wire and below this size cables are accepted to be used for sensor installations. Small gauge wires can obtain more distance covered between sensor to controller. Higher gauge in wire can loss the signal between controller and sensor.
Recommended wires for sensor installations are, Telephone cable, 0.5 square mm three core wire, internet cable or 0.25 square mm three core flexible wires.
For power connections 2.5 square mm wires should be used.
Useful for only overhead tank

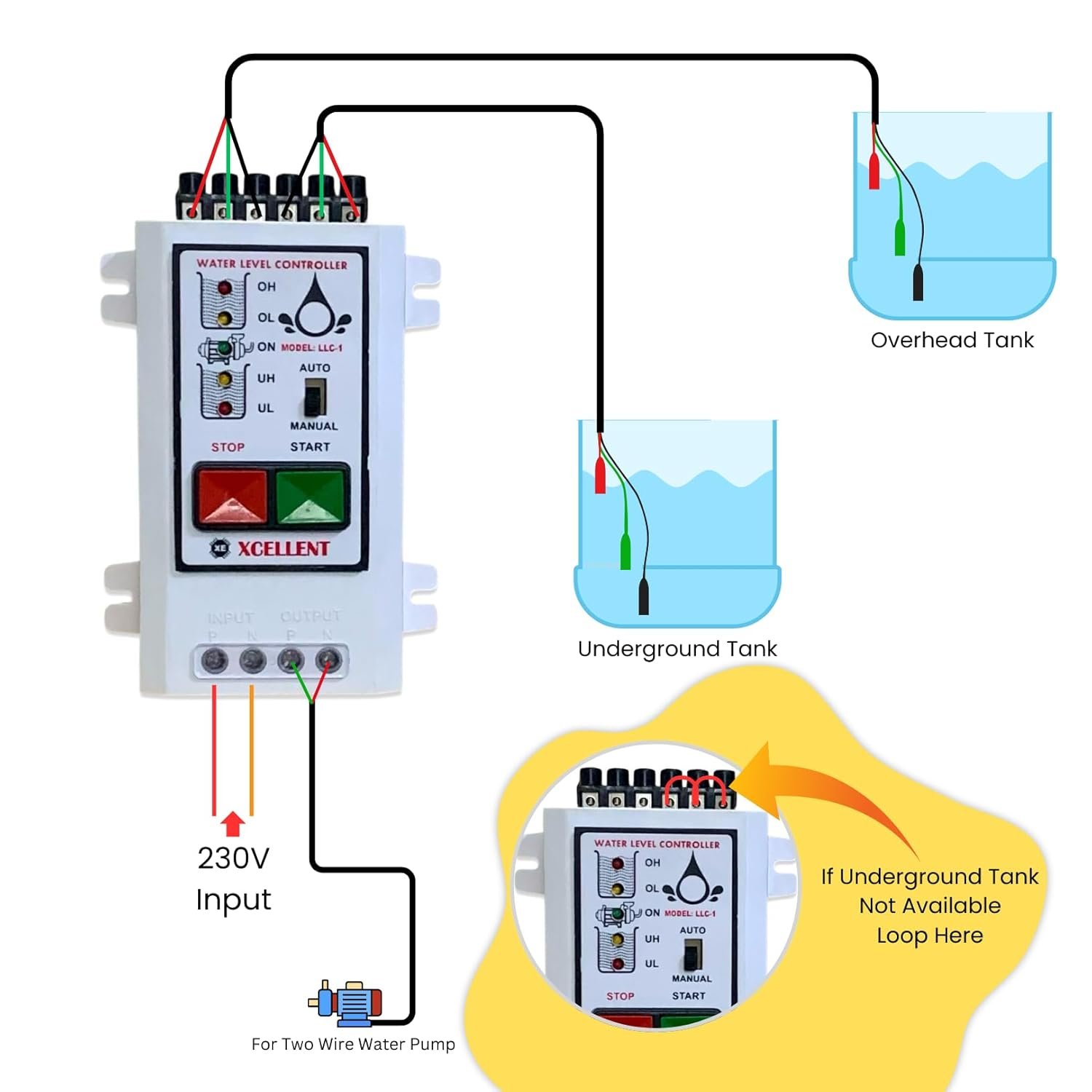

At some locations underground tank is not available so short C-UL-UH each other and underground tank sensors are bypassed. Then only three sensors need to be installed in overhead tank.
To avoid dry running of motor we recommend to install underground tank sensors so whenever water is not present into the source tank, motor will not run.

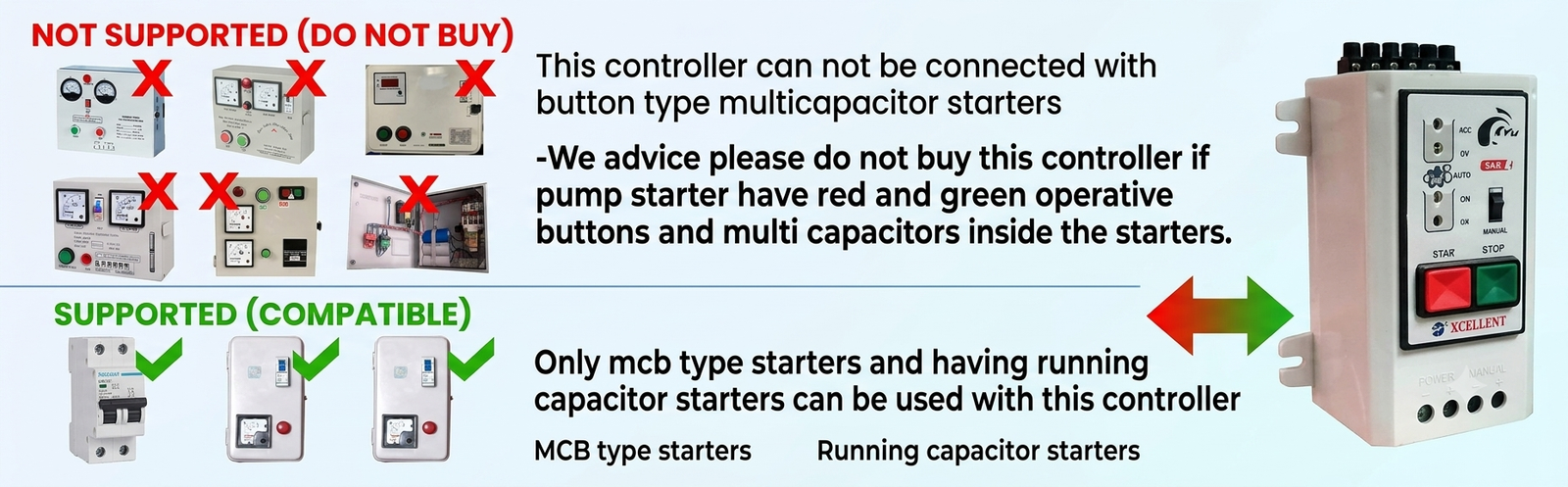

This controller can not be connected with button type multicapacitor starters
We advice please do not buy this controller if pump starter have red and green operative buttons and multi capacitors inside the starters.
Only mcb type starters and having running capacitor starters can be used with this controller
